By the action of high frequency electric current, the binder melts and bond the two parts together tightly. It cuts granites, marbles and concrete articles.

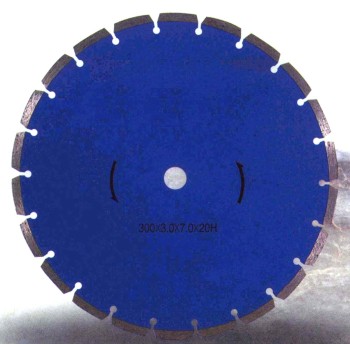

Brazed   Diamond   Blade
@
Company:
Contact:  Email: From:
Tel: Fax:
Other:



High Frequency Welded Type - SILVER WELDED

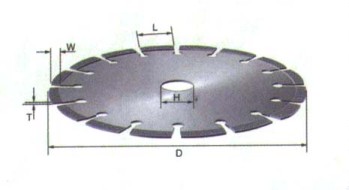

Art Number

Outer Diameter

Segment Dimension

Segment Number

Hole Diameter (H)

L

T

W

HSW300

300

40

3.0/3.2

8

21

25.4/50

HSW350

350

40

3.2/3.4

8

24

25.4/50

HSW400

400

40

4.0

8

28

50

HSW450

450

40

4.0

8

32

50

HSW500

500

40

4.2

8

36

50/80

HSW600

600

40

4.6~4.2

8

42

50/80

HSW700

700

40

5.0

8

50

50/80

HSW800

800

40

6.0

8

57

50/80

HSW900

900

24

6.6~6.2

10

64

80/100

HSW1000

1000

24

7.4~6.8

10

70

80/100

HSW1200

1200

24

7.5~7.0

10

80

80/100

HSW1600

1600

24

9.2~8.6

10

108

100

APPLICATION: For cutting various hard nonmetallic materials such as marble, granite Ceramic, concrete, asphalt and refractory, etc.

@

@
