| By the action of high frequency electric current, the binder melts and bond the two parts together tightly. It cuts granites, marbles and concrete articles. |
(for more detail)
Sintered
diamond blade
¡@
Sintered diamond blade is designed with varied plate structures and segment forms to get a large range of cutting performances. It is the best choice for stone manufacturers to win good produce effects and to get their money deserved value. It is classified into segmented blades (A & AU), continuous rim blade(B), and turbo blades(AB)¡@

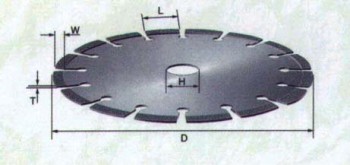

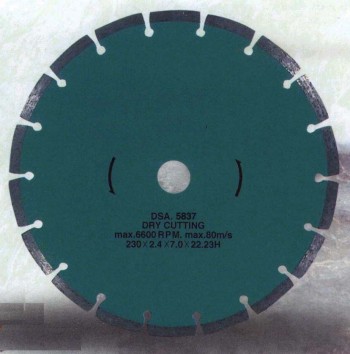

1. Segmented Diamond Blades - Certificate of conformity DSA5408
Ideal for dry or wet cutting for constructing materials such as marbles, granites, bricks, ceramics and refractory material, as well as for heavy duty cutting of concrete, asphalt and stones. Rhombic holes and variant arbor holes are variable . Its specification varies from Æ 105 to Æ 350 as stated in the following table.
 |
 |
Continuous rim blade for wet cut
Specifications(mm) |
|||||
Art No. |
Diameter |
T |
W |
L |
H |
A105 |
105 |
1.7 |
7 |
35 |
16, 20, 22.23 |
A110 |
110 |
1.7 |
7 |
31.5 |
16, 20, 22.23 |
A115 |
115 |
1.9 |
7 |
33 |
20, 22.23 |
A125 |
125 |
1.9 |
7 |
37.5 |
20, 22.23 |
A150 |
150 |
1.9 |
7 |
33.5 |
20, 22.23 |
A180 |
180 |
2.2 |
7 |
35 |
22.23, 25.4, 30 |
A200 |
200 |
2.2 |
7 |
39 |
22.23, 25.4, 30 |
A230 |
230 |
2.4 |
7 |
38.5 |
22.23, 25.4, 30 |
A250 |
250 |
2.4 |
7 |
35 |
22.23, 25.4, 30, 50 |
A300 |
300 |
3.2 |
7 |
35 |
22.23, 25.4, 30, 50 |
A350 |
350 |
3.2 |
7 |
40 |
22.23, 25.4, 30, 50 |
APPLICATION |
Granite, Marble, Concrete, Slate, Cement brick, Lime stone, Sandstone, Roofing Tile, Terrazzo, Engineering brick, Building materials, etc. |
||||

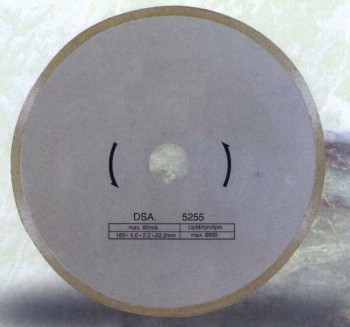

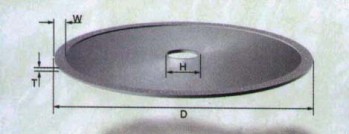

2. Continuous rim blades. - Certificate of conformity DSA5410
Continuous rim blade is suitable for wet cutting. Its size ranges from Æ 80mm to Æ 300mm. Various specifications and types of the blades are available to meet users' different requirements. It cuts tiles, ceramics, bricks, porcelains and stones with a large range of hardness
 |
 |
Continuous rim blade for wet cut
Specifications(mm) |
|||||
Art No. |
Diameter |
T |
W |
L |
H |
B105 |
105 |
1.7 |
5 |
35 |
16, 20, 22.23 |
B110 |
110 |
1.7 |
5 |
31.5 |
16, 20, 22.23 |
B115 |
115 |
1.9 |
5 |
33 |
20, 22.23 |
B125 |
125 |
1.9 |
5 |
37.5 |
20, 22.23 |
B150 |
150 |
1.9 |
5 |
33.5 |
22, 22.23 |
B180 |
180 |
2.2 |
5 |
35 |
22.23, 25.4, 30 |
B200 |
200 |
2.2 |
5 |
39 |
22.23, 25.4, 30 |
B230 |
230 |
2.4 |
5 |
38.5 |
22.23, 25.4, 30 |
B250 |
250 |
2.4 |
5 |
35 |
22.23, 25.4, 30, 50 |
B300 |
300 |
3.0 |
6 |
35 |
22.23, 25.4, 30, 50 |
B350 |
350 |
3.2 |
7 |
40 |
22.23, 25.4, 30, 50 |
APPLICATION |
For Ceramic, Tile, Granite, Soft brick, Porcelain, Glass, Roofing Tile Clinker, Building Materials, etc. |
||||
¡@
¡@
3 Turbo Diamond Blade
Turbo blade give customs the advantages of both continuous rim and segmented blade. View Well's unique design ensure faster cutting with minimum chipping and better cooling with ideal removal of fine to the blades, and thus results in high cutting speed and long working life. It cuts marbles, granites, concrete's, bricks, tiles and other masonry materials either dry or wet.
 |
 |

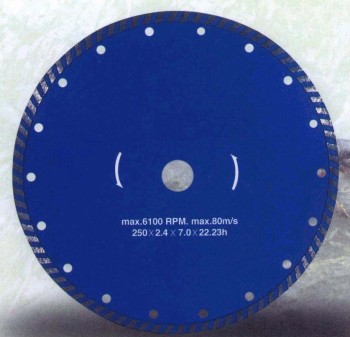

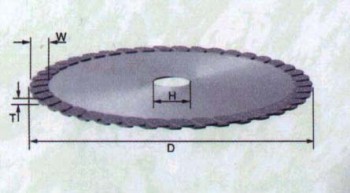

Turbo type for Wet & Dry Cutting - Flat Turbo
Specifications(mm) |
||||
Art No. |
Diameter |
T |
W |
H |
ABF105 |
105 |
2.0 |
7 |
16, 20, 22.23 |
ABF110 |
110 |
2.0 |
7 |
16, 20, 22.23 |
ABF115 |
115 |
2.0 |
7 |
20, 22.23 |
ABF125 |
125 |
2.0 |
7 |
20, 22.23 |
ABF150 |
150 |
2.2 |
7 |
20, 22.23 |
ABF180 |
180 |
2.2 |
7 |
22.23, 25.4, 30 |
ABF200 |
200 |
2.4 |
7 |
22.23, 25.4, 30 |
ABF230 |
230 |
2.4 |
7 |
22.23, 25.4, 30 |
ABF250 |
250 |
2.4 |
7 |
22.23, 25.4, 30, 50 |
ABF300 |
300 |
3.2 |
7 |
22.23, 25.4, 30, 50 |
ABF350 |
350 |
3.2 |
7 |
22.23, 25.4, 30, 50 |
APPLICATION |
Granite, Marble, Concrete, Slate, Cement brick Hard brick, Terrazzo, Lime Stone, Concrete tile, Sandstone, Engineering brick ,Roofing tile, building material, etc. |
|||
 |
 |

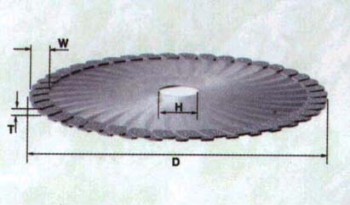

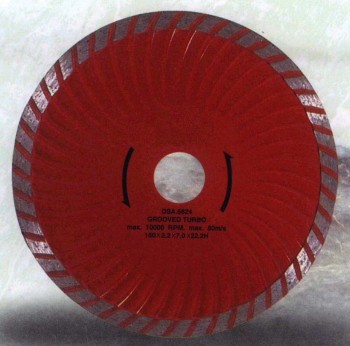

Turbo type for Wet & Dry Cutting - Wave Turbo
Specifications(mm) |
||||
Art No. |
Diameter |
T |
W |
H |
ABW105 |
105 |
2.0 |
7 |
16, 20, 22.23 |
ABW110 |
110 |
2.0 |
7 |
16, 20, 22.23 |
ABW115 |
115 |
2.0 |
7 |
20, 22.23 |
ABW125 |
125 |
2.0 |
7 |
20, 22.23 |
ABW150 |
150 |
2.2 |
7 |
20, 22.23 |
ABW180 |
180 |
2.2 |
7 |
22.23, 25.4, 30 |
ABW200 |
200 |
2.4 |
7 |
22.23, 25.4, 30 |
ABW230 |
230 |
2.4 |
7 |
22.23, 25.4, 30 |
APPLICATION |
Granite, Marble, Concrete, Slate, Cement brick Hard brick, Terrazzo, Lime Stone, Concrete tile, Sandstone, Engineering brick ,Roofing tile, building material, etc. |
|||
