The common reinforced cutting wheels can be used of cutting or grooving of many different kinds of steel pipes, angle steel, channel steel and round steel.  They are no doubt the indispensable tools for mechanical processing.
 The reinforced cutting wheels are special cutting tools which can cut 18-32mm"V" high manganese steel and other harder section steels, showing high efficiency and reliability.
  Please check the products that you want ,and send us .We will contact you as soon as possible.
   Reinforced   Grinding / Cutting Wheels
¡@
Company:
Contact:  Email: From:
Tel: Fax:
Other:



¡@

¡@Specification of Reinforced Grinding Wheels

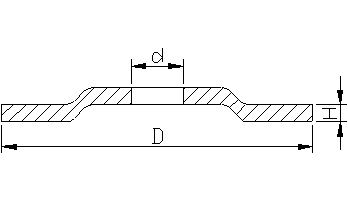

D x H x d Maximum Speed
Inches mm 3800m/min 4300m/min 4800m/min
4 x 1/8 x 5/8 100 x 3 x 16 12100 R.P.M. 13700 R.P.M. 15200 R.P.M.
4 x 5/32 x 5/8 100 x 4 x 16
4 x 1/4 x 5/8 100 x 6 x 16
41/2 x 1/8 x 7/8 115 x 3 x 22 10500 R.P.M. 11900 R.P.M. 13300 R.P.M.
41/2 x 1/4 x 7/8 115 x 6 x 22
5 x /18 x 7/8 125 x 3 x 22 9700 R.P.M. 11000 R.P.M. 12200 R.P.M.
5 x 5/32 x 7/8 125 x 4 x 22
5 x 1/4 x 7/8 125 x 6 x 22
6 x 1/8 x 7/8 150 x 3 x 22 8100 R.P.M. 9100 R.P.M. 10200 R.P.M.
6 x 1/4 x 7/8 150 x 6 x 22
7 x 1/8 x 7/8 180 x 3 x 22 6700 R.P.M. 7600 R.P.M. 8500 R.P.M.
7 x 1/4 x 7/8 180 x 6 x 22
7 x 5/16 x 7/8 180 x 8 x 22
9 x 1/4 x 7/8 225 x 6 x 22 5260 R.P.M. 5950 R.P.M. 6640 R.P.M.

¡@

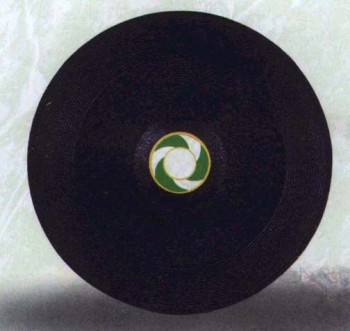

Reinforced Cutting Wheels

¡@

D x H x d Maximum Speed
Single net Double net
Inches MM 3800M/MIN 4300M/MIN 4800M/MIN
4 x 1/12 x 5/8 100 x 2 x 16 12100 R.P.M. 13700 R.P.M. 15200 R.P.M.
41/2 x 1/8 x 7/8 115 x 3 x 22 10500 R.P.M. 11900 R.P.M. 13300 R.P.M.
5 x 1/8 x 7/8 125 x 3 x 22 9700 R.P.M. 11000 R.P.M. 12200 R.P.M.
6 x 1/8 x 7/8 150 x 3 x 22 8100 R.P.M. 9100 R.P.M. 10200 R.P.M.
7 x 1/8 x 7/8 180 x 3 x 22 6700 R.P.M. 7600 R.P.M. 8500 R.P.M.
8 x 1/8 x 7/8 200 x 3 x 22 5900 R.P.M. 6680 R.P.M. 7460 R.P.M.
9 x 1/8 x 7/8 230 x 3 x 22 5260 R.P.M. 5950 R.P.M. 6500 R.P.M.
10 x 1/8 x 1 250 x 3 x 25.4 4750 R.P.M. 5370 R.P.M. 6000 R.P.M.
12 x 1/8 x 1 305 x 3 x 25.4 4000 R.P.M. 4600 R.P.M. 5100 R.P.M.
12 x 1/8 x 11/4 305 x 3 x 32
14 x 1/8 x 1 355 x 3 x 25.4 3500 R.P.M. 4400 R.P.M. 4400 R.P.M.
14 x 1/8 x 11/4 355 x 3 x 32
16 x 1/8 x 1 400 x 3 x 25.4 3400 R.P.M. 3400 R.P.M. 3800 R.P.M.
16 x 1/8 x 11/4 400 x 3 x 32

¡@
