Synthetic diamond grinding wheels are mainly used in the grinding of various
hard carbide, special shaped surfaces and workpieces made of hard brittle
nonmetal materials with surface finish requirements or with difficult to machine
surface. |
|
Synthetic Diamond Grinding Wheels |
|
|
Synthetic Diamond Grinding Wheels (Detail)
Synthetic diamond grinding wheels are mainly used in the grinding of various hard carbide, special shaped surfaces and workpieces made of hard brittle nonmetal materials with surface finish requirements or with difficult to machine surface.
We provided with different categories, sizes can be provided to satisfy customers.

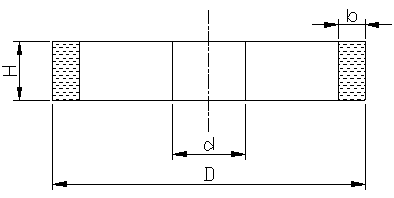

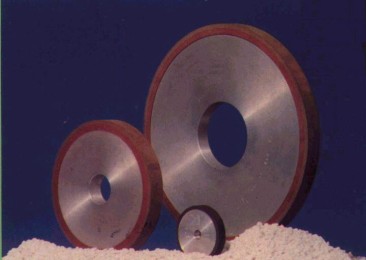

1) Plain wheels
|
|
|
D |
H |
d |
b |
|
12 |
8 10 13 |
4 |
2 |
|
14 |
8 10 16 |
4 |
2 |
|
16 |
8 10 16 |
4 |
2 |
|
18 |
8 10 16 20 |
6 |
2 |
|
20 |
8 10 16 20 |
6 |
2 |
|
25 |
10 16 20 |
6 |
3 |
|
30 |
10 16 20 |
10 |
3 |
|
40 |
6 8 10 |
10 |
3 |
|
50 |
6 8 10 |
10 |
3 |
|
60 |
6 8 10 16 |
10 |
3 |
|
80 |
6 8 10 16 |
10, 2 |
3 |
|
100 |
6 8 10 16 |
20 |
4 |
|
125 |
6 8 10 16 |
32 |
4 |
|
150 |
6 8 10 16 20 |
32 |
4 |
|
200 |
8 10 16 20 |
32, 75 |
4 |
|
250 |
8 10 16 25 |
75, 127 |
5 |
|
300 |
10 16 20 25 |
127, 203 |
5 |
|
350 |
16 20 25 32 |
127, 203 |
5 |
|
400 |
20 25 32 |
203 |
5 |

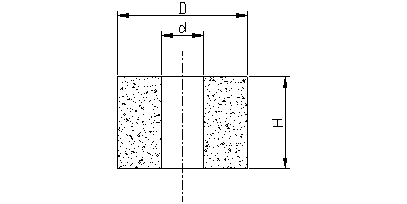

2) Small plain wheels
|
|
|
D |
H |
d |
|
5 |
4 6 8 |
2 |
|
6 |
4 6 8 |
2 |
|
8 |
6 8 10 |
3 |
|
10 |
6 8 10 |
3 |

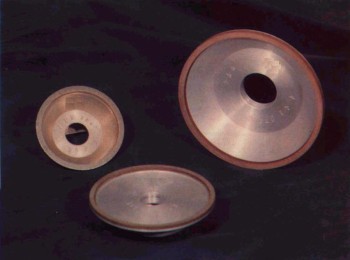

3)Bowl wheels No. 1
|
D |
H |
d |
b |
h |
|
50 |
20 |
10 |
2 |
3 |
|
80 |
25 |
10, 20 |
3, 5 |
3 |
|
100 |
32 |
20 |
3, 5, 10 |
3 |
|
125 |
32 |
32 |
5, 10 |
3 |
|
150 |
32 |
32 |
5, 10 |
3 |
|
200 |
40 |
32 |
13 |
3 |

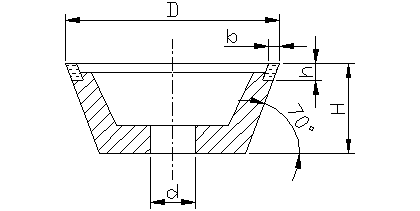

4) Taper cup wheels No. 2
|
|
|
D |
H |
d |
b |
h |
|
50 |
25 |
10 |
2 |
5 |
|
80 |
32 |
10, 20 |
2, 3 |
5 |
|
100 |
40 |
20 |
3 |
7 |
|
125 |
40 |
32 |
3 |
7 |

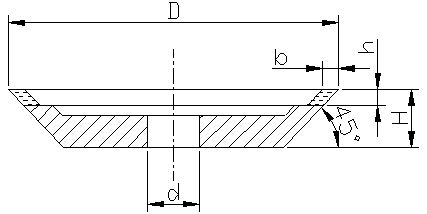

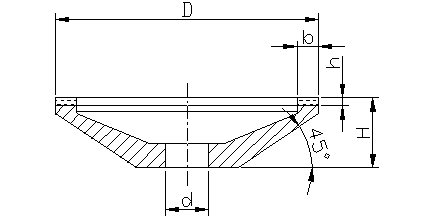

5) Dished wheels No. 1
|
|
|
D |
H |
d |
b |
h |
|
80 |
12 |
10, 20 |
3 |
3 |
|
100 |
13 |
20 |
3, 5 |
3 |
|
125 |
13 |
32 |
5 |
3 |
|
150 |
16 |
32 |
10 |
3 |

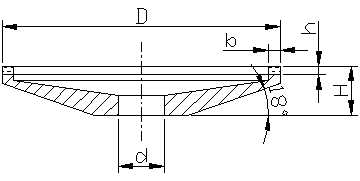

6) Dished wheels No. 2
|
|
|
D |
H |
d |
b |
h |
|
50 |
10 |
10 |
2 |
2 |
|
80 |
13 |
10, 20 |
3 |
3 |
|
100 |
13 |
20 |
3 |
3 |
|
125 |
16 |
32 |
5 |
3 |
|
150 |
16 |
32 |
5 |
3 |

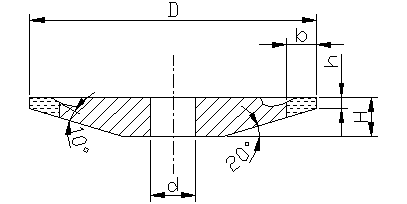

7) Dished wheels No. 3
|
|
|
D |
H |
d |
b |
h |
|
50 |
6 |
10 |
10 |
1 |
|
75 |
8 |
10 |
10 |
1 |
|
100 |
10 |
20 |
10 |
1 |
|
125 |
15 |
32 |
10 |
1 |
8) One recess wheels
|
|
|
D |
H |
d |
b |
h |
|
50 |
13 |
10 |
5 |
3 |
|
80 |
13 |
10, 20 |
6 |
3 |
|
100 |
16 |
20 |
10 |
3 |
|
125 |
16 |
32 |
10, 15, 20 |
3 |
|
150 |
16 |
32 |
10, 15, 20 |
3 |
|
175 |
20 |
32, 50 |
5, 10, 15, 20 |
3 |
|
200 |
20 |
32 |
15, 20, 30 |
3 |
9) Two recesses wheels
|
|
|
D |
H |
d |
b |
h |
|
100 |
20 |
20 |
4 |
3 |
|
125 |
20 |
32 |
4 |
3 |
|
150 |
20 |
32 |
4 |
3 |
|
175 |
16, 20 |
32 |
4, 6 |
3 |
|
200 |
20 |
32 |
6 |
3 |
|
225 |
16, 25 |
32, 75 |
8 |
3 |
10) Plain wheels with one tapered side
|
|
|
D |
H |
d |
b |
|
80 |
8 |
10, 20 |
5 |
|
100 |
10 |
20 |
5 |
|
125 |
10 |
32 |
8 |
|
150 |
10 |
32 |
8 |

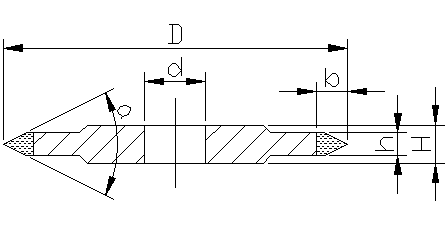

11) Plain wheels with two tapered sides
|
|
|
D |
H |
d |
b |
h |
a |
|
30 |
5 |
8, 10 |
6 |
3 |
40o, 60o |
|
40 |
5 |
10 |
6 |
3 |
40o, 60o |
|
50 |
5 |
10 |
6 |
3 |
40o, 60o |
|
60 |
6 |
10 |
6 |
3 |
40o, 60o |
|
80 |
6 |
10, 20 |
6 |
3 |
40o, 60o |
|
100 |
6 |
20 |
6 |
3 |
40o, 60o |
|
125 |
6 |
32 |
6 |
3 |
40o, 60o |
|
150 |
8 |
32 |
6 |
3 |
40o, 60o |
|
200 |
10 |
32 |
8 |
5 |
40o, 60o |

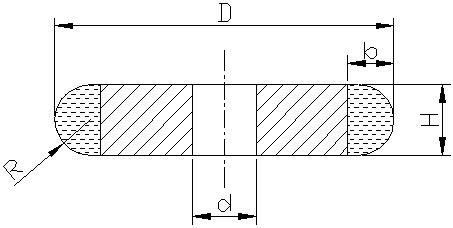

12) Plain arc wheels
|
|
|
D |
H |
d |
b |
R |
|
60 |
4 |
10 |
4 |
2 |
|
80 |
6 |
10, 20 |
6 |
3 |
|
100 |
8 |
20 |
8 |
4 |
|
150 |
8 |
32 |
8 |
4 |

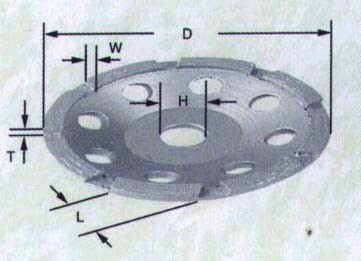

Diamond Cup Saw
Suitable for grinding and polishing marble, granite, natural and artificial stone, concrete, tile, et.c
|
|
|
| Type | Outer Diameter | Inner Diameter | Segment Dimension | Segment Number | ||
| Thickness | Height | Length | ||||
| Segmented type in single Row | 110 | 22.2 | 5.0 | 8.0 | 30 | 8 |
| 115 | 22.2 | 5.0 | 8.0 | 30 | 9 | |
| 125 | 22.2 | 5.0 | 8.0 | 30 | 10 | |
| 180 | 22.2 | 5.0 | 8.0 | 37 | 12 | |
| Segmented type in double Row | 100 | 22.2 | 5.0 | 8.0 | 30 | 16 |
| 115 | 22.2 | 5.0 | 8.0 | 30 | 18 | |
| 125 | 22.2 | 5.0 | 8.0 | 30 | 20 | |
| 180 | 22.2 | 5.0 | 8.0 | 37 | 24 | |
| Turbo type | 100 | 22.2 | 5.0 | 20.0 | 20 | |
| 115 | 22.2 | 5.0 | 20.0 | 25 | ||
| 125 | 22.2 | 5.0 | 20.0 | 30 | ||
| 180 | 22.2 | 5.0 | 20.0 | 40 | ||
Synthetic diamond grinding wheels are mainly used in the grinding of hard-brittle materials, such as cement pipe and so on.
Synthetic diamond wheels with different categories, sizes can be provided to satisfy customers.
|
|
 |
